Standard Neck Sizes for Cosmetic Tubes & Thread Types

If a buyer sends only a tube capacity such as “30 ml eye cream tube” or “100 g face wash tube,” there is still not enough information to confirm the closure. The supplier must also know the neck geometry, dispensing orifice, closure type and sealing interface. This is why understanding standard neck sizes for cosmetic tubes and common cosmetic tube thread types can prevent expensive cap-fit problems before tooling, sampling and filling begin.

Quick answer: numbers such as 15/410 describe a nominal neck diameter plus a thread-finish family. They do not simply describe tube capacity, and “410” should not be read as a 10 mm thread height.

What Does 13/410, 15/410 or 18/410 Actually Mean?

The first number describes the nominal neck/closure diameter in millimeters; the second identifies the neck-finish or thread configuration family.

In a designation such as 15/410, the two numbers provide different kinds of information. “15” is the nominal finish diameter. “410” is an industry finish designation describing the continuous-thread configuration and related geometry rather than a direct millimeter height.

15Nominal neck-finish diameter, approximately 15 mm.

410Continuous-thread finish family / configuration code, not “10 mm high.”

Does “410” mean the neck is 10 mm high?

No. Treat the complete designation as a controlled neck-finish specification. A closure should never be selected simply because another neck “looks about the same diameter.”

Engineer’s adviceAlways request the supplier’s dimensional drawing and a physical matching sample before freezing the closure specification.

Which Neck Dimensions Matter Besides the Thread Code?

T, I, E, H and S dimensions can all affect how a cap, plug, liner or dispensing system mates with the tube neck.

A neck finish cannot be checked reliably with a single caliper reading. Buyers should distinguish the thread outside diameter from the internal bore and from the actual dispensing orifice.

Critical neck dimensions buyers should understand
Dimension	Meaning	Why It Matters
T	Outside diameter across threads	Primary closure-to-neck fit.
I	Inside diameter / bore	Affects product flow and internal fitments.
E	Outside diameter below thread	Helps define thread depth and neck geometry.
H	Finish height	Influences closure engagement and cap position.
S	Distance from top sealing surface to thread start	Influences thread start and closure engagement.

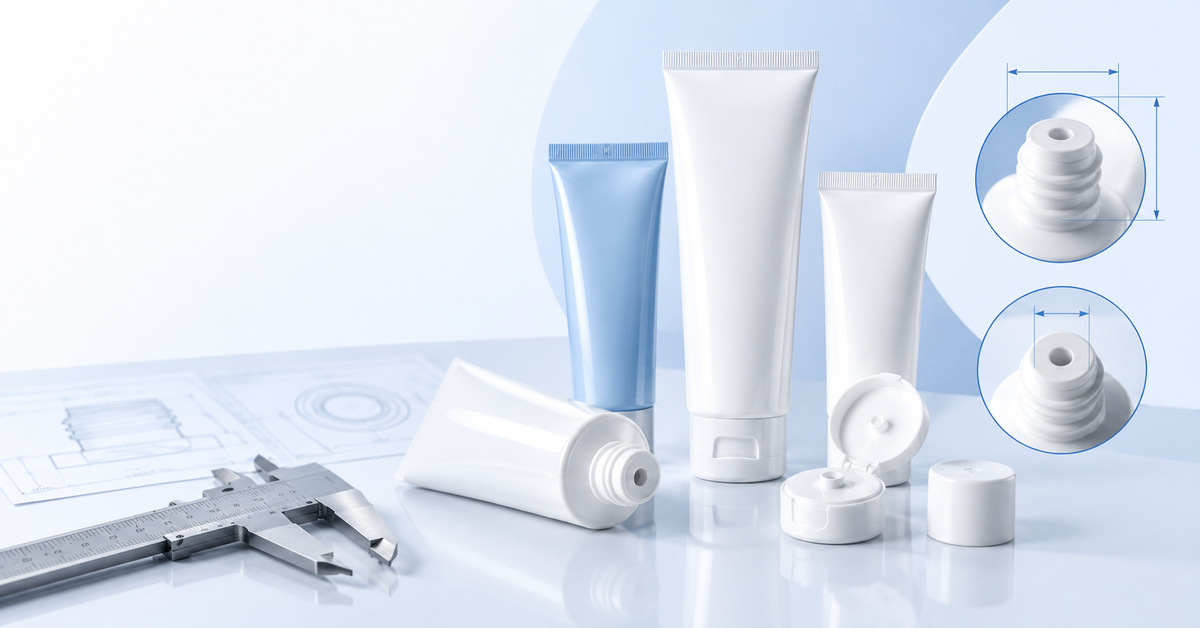

Caliper measuring the outside diameter of a cosmetic squeeze tube neck — Visual concept: distinguish neck/thread outside diameter from the smaller dispensing opening.

What Are the Common Standard Neck Sizes for Cosmetic Tubes?

13/410 to 22/410 are useful reference sizes for certain cosmetic dispensing systems, but they are not a universal size chart for every PE or ABL squeeze tube.

The table below is a buyer reference rather than an automatic selection rule. The actual supplier drawing and compatible closure specification still control production.

Typical continuous-thread neck-finish applications
Neck Finish	Nominal Diameter	Typical Packaging Direction	Buyer Should Confirm
13/410	Approx. 13 mm	Small treatment / precision dispensing	Orifice, closure drawing, seal geometry
15/410	Approx. 15 mm	Serum, airless tube, small treatment packs	Pump or cap interface, thread engagement
18/410	Approx. 18 mm	Treatment and cosmetic dispensing	Cap match, orifice, torque
22/410	Approx. 22 mm	Larger treatment pump / dispensing interfaces	Pump fit, closure height, seal system

Technical comparison of multiple cosmetic tube neck sizes and thread geometries — Visual comparison of increasing neck diameters. Final production dimensions should come from the controlled supplier drawing.

Does a larger tube always require a larger thread?

No. Tube diameter, capacity and neck finish are related through package design, but one does not uniquely determine the other. A larger tube may still use a relatively small dispensing opening when dose control is important.

Buyers can also review DEZHOU Packaging’s custom cosmetic tube range when comparing tube, neck and closure directions.

How Do Screw Caps and Flip-Top Caps Match the Tube Neck?

The closure must match both the neck-finish geometry and the sealing system—not just the nominal diameter.

When sourcing Screw Cap Tubes or Flip Top Cap Cosmetic Tubes, buyers often focus on cap color and appearance first. From an engineering perspective, the better sequence is: neck → sealing surface → thread/snap geometry → orifice → cap → decoration.

Closure selection and compatibility guide
Closure Type	Critical Neck Requirement	Typical Application	Main Compatibility Risk
Screw Cap	Matching thread finish	Cream, ointment, toothpaste	Incorrect engagement or torque
Flip-Top Cap	Matching neck / snap geometry + sealing feature	Face wash, hand cream, personal care	Poor land seal or cap mismatch
Precision Nozzle	Controlled orifice + matching closure	Needle Nose Squeeze Tubes, spot treatment	Wrong flow rate or leakage
Applicator Assembly	Special neck interface	Eye Cream Tube with Applicator	Fitment and sealing mismatch
Airless Pump	Exact pump-to-neck interface	Serums, foundation, treatment packs	Pump engagement and seal failure

Exploded-view comparison of screw cap, flip-top, nozzle and pump closures for cosmetic tubes — Different closure families can require very different neck geometry even when the overall tube body looks similar.

Why Is Tube Orifice Size Different from Neck Size?

The neck size controls the closure interface; the orifice controls the actual product flow.

This is one of the most common purchasing mistakes. A buyer may measure a 15 mm neck and assume the product exits through a 15 mm opening. In reality, the dispensing orifice can be much smaller.

How should product viscosity affect the orifice?

Low-viscosity serums often need more controlled dispensing than thick creams or face wash. For Needle Nose Squeeze Tubes and spot-treatment packs, a smaller precision opening can improve dose control. Thicker formulas may require a wider opening to prevent excessive squeeze force.

Engineer’s adviceApprove the orifice with the actual formulation or a representative fill. Viscosity, temperature and consumer squeeze force can change dispensing behavior.

Do PE and ABL Tubes Use the Same Neck and Sealing Design?

They can use similar closure concepts, but PE extruded tubes and ABL laminated tubes do not necessarily behave identically during forming, filling and tail sealing.

PE and ABL tubes describe the tube-body construction. The cap normally interfaces with the molded head and neck, while the opposite end is closed by the tail-sealing process after filling. These are two different functional zones and should not be confused.

Does ABL automatically require a different cap thread?

No. The selected head and neck design determines the closure interface. An ABL sidewall does not automatically require a unique thread code.

Important distinctionThe head/neck closure interface and the tail heat-sealing area are separate engineering topics. The full package still needs to be reviewed as one system.

What Do Packaging Engineers Check Before Approving a Neck and Cap?

A professional approval compares drawings, physical samples and filled-pack performance—not simply whether the cap can screw on.

Confirm tube diameter and target capacity.
Confirm the exact neck-finish drawing.
Measure the thread outside diameter.
Measure the internal bore and actual dispensing orifice.
Verify closure thread or snap geometry.
Check the land seal, plug seal or other sealing feature.
Confirm application torque where relevant.
Check removal torque after storage when required.
Fill with the intended or representative formula.
Evaluate leakage and distribution conditions before bulk approval.

What Are the Most Common Neck-Finish Sourcing Mistakes?

The biggest mistakes are assuming nominal diameter is the only critical dimension, mixing incompatible finish families, and approving a cap without an actual package test.

Mistake 1“Both are 15 mm, so they must fit.” They may not.

Mistake 2Treating 410 as a physical 10 mm height.

Mistake 3Ignoring the orifice. Cap fit and dispensing performance are separate issues.

Mistake 4Ordering custom-color caps before freezing the neck specification.

What Information Should Buyers Send Before Requesting a Quote?

Send tube dimensions, capacity, material, closure requirement, orifice requirement and intended formula so the supplier can confirm the complete package.

Specification	Example	Why It Matters
Tube diameter	Ø30 / Ø35 mm	Defines body size and tooling family
Capacity	50 ml / 100 g	Helps determine tube length
Material	PE / ABL	Defines tube construction
Neck / closure	Screw / flip-top / specialty	Defines cap interface
Orifice	Supplier recommendation or target ID	Controls product flow
Formula	Cream / gel / serum / toothpaste	Supports compatibility review
Decoration	Offset / silk screen / hot stamping	Completes production specification
Quantity	5,000+ pcs	Supports quotation and planning

FAQ: Cosmetic Tube Neck Sizes and Thread Types

Always confirm the supplier’s engineering drawing before treating a neck-finish designation as a final production specification.

Is 15/410 the same as a 15 mm opening?

No. 15 refers to the nominal neck-finish diameter; the dispensing orifice can be much smaller.

Can I use a 15/400 cap on a 15/410 neck?

Do not assume compatibility. Different finish designations represent different thread geometry and engagement conditions.

Is 410 a 10 mm-high thread?

No. 410 is a neck-finish/thread-configuration designation rather than a direct millimeter height measurement.

Are cosmetic tube neck sizes globally standardized?

Some closure systems use recognized continuous-thread finish families, but squeeze tubes also use supplier-specific necks, snap-on closures and specialty dispensing systems.

What should I send a supplier if I already have a cap?

Send the cap drawing or a physical sample, material information, thread/snap details and sealing features. Physical compatibility should be checked before bulk production.

Need Help Matching a Tube Neck and Closure?

Send DEZHOU Packaging your required tube diameter, capacity, material, closure style and product type. If you already have a cap, send its engineering drawing or a physical sample so the interface can be reviewed before mass production.

Request a Tube Packaging Review

Technical Reference Note

For production, the controlled supplier drawing and physical compatibility test should always take priority over a generic web chart. Neck-finish terminology and torque evaluation should be checked against the packaging specification and test method used by the buyer, filler and packaging supplier.
