Choosing the right cosmetic tube sizes is not as simple as matching a 100ml formula with a tube marked “100ml.” Cosmetic tube dimensions depend on the relationship between capacity, diameter, tube length, shoulder design, cap size and product formula. A 100ml face wash tube can therefore look very different from a 100ml hand cream tube even when both hold the same nominal volume.
For buyers, the most useful starting point is usually the tube diameter. Diameter affects the overall proportions, squeeze feel, shelf presence, cap options and even how well the pack fits existing filling and packing equipment. Length can then be adjusted to reach the target capacity.
A cosmetic tube capacity does not determine one fixed tube size. As a practical sourcing rule, choose the diameter first based on capacity, product positioning and closure, then adjust the tube length to reach the required fill volume. Always confirm the final dimensions with a filled sample before mass production.
What Do Cosmetic Tube Sizes Actually Mean?
When a tube manufacturer discusses cosmetic tube dimensions, three measurements matter most:
- Capacity — the amount of product the tube is designed to contain, usually stated in ml or fl oz.
- Diameter — the width of the tube body, usually stated in millimeters.
- Length — the usable body length from the shoulder area toward the sealed tail.
Capacity is the result of several structural variables, not an independent dimension. That is why asking for “a 100ml tube” is only the beginning of a packaging specification.
Why can two 100ml cosmetic tubes have different dimensions?
Imagine two 100ml skincare tubes. One uses a relatively narrow Ø35mm body. The other uses a wider Ø40mm body. The narrower tube generally needs to be longer to provide similar internal volume, while the wider tube can be shorter.
- A narrower tube can look more elegant and vertically proportioned.
- A wider tube can create stronger shelf presence.
- A short, wide tube may be easier to stand on a large cap.
- A long, narrow tube may fit travel kits or retail cartons differently.
Same capacity does not mean the same cosmetic tube dimensions.
Why should buyers choose diameter before length?
In many sourcing projects, buyers provide a desired tube length first because they are working from a reference sample or rendering. That can create unnecessary limitations.
A better sequence is:
- Confirm target fill capacity.
- Choose an appropriate tube diameter.
- Confirm cap and shoulder compatibility.
- Check the formula and required headspace.
- Adjust tube length around those parameters.

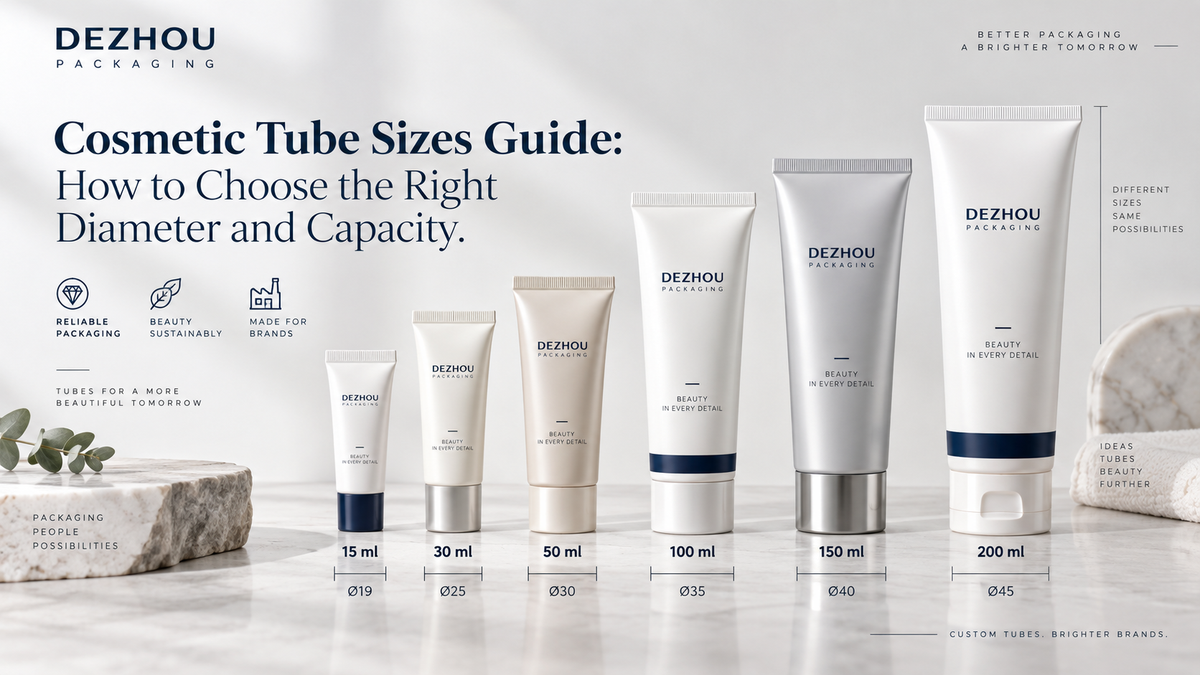

Cosmetic Tube Size Chart by Capacity and Diameter
The chart below provides practical starting ranges for common cosmetic packaging tube sizes. These are sourcing references rather than fixed engineering limits because actual capacity depends on tube length, wall structure, shoulder design, cap and formula density.
| Cosmetic Tube Capacity | Approx. fl oz | Suggested Diameter Range | Typical Positioning |
|---|---|---|---|
| 5–15 ml | 0.17–0.5 oz | Ø13–19 mm | Sample / eye care |
| 15–30 ml | 0.5–1.0 oz | Ø19–25 mm | Travel size cosmetic tube |
| 30–50 ml | 1.0–1.7 oz | Ø25–30 mm | Hand cream / skincare |
| 50–80 ml | 1.7–2.7 oz | Ø30–35 mm | Face wash / sunscreen |
| 80–120 ml | 2.7–4.1 oz | Ø35–40 mm | Standard skincare |
| 120–150 ml | 4.1–5.1 oz | Ø40–45 mm | Face wash / body care |
| 150–250 ml | 5.1–8.5 oz | Ø45–50 mm | Hair care / larger personal care |
For example, a 50ml cosmetic tube may use roughly Ø25–30mm depending on the desired proportions. A 100ml cosmetic tube may move into the Ø35–40mm range, while larger 150ml and 200ml packs often use a wider body.
These ranges should help buyers narrow the options before sampling, but they should not replace an actual capacity test.
15ml and 30ml cosmetic tubes
Small sample size cosmetic tubes and travel size cosmetic tubes are commonly used for trial products, hotel amenities, eye care, concentrated treatments and promotional kits. At this size, the closure becomes especially important. An oversized cap can make a small tube look visually unbalanced, while a very narrow tube may limit available closure styles.
50ml cosmetic tubes
A 50ml cosmetic tube is a versatile format for sunscreen, facial cleanser, moisturizer, hand cream and travel-friendly skincare tubes. For many projects, Ø25–30mm provides a useful starting range, but a brand may intentionally choose a wider diameter for stronger shelf presence.
100ml cosmetic tubes
A 100ml cosmetic tube is one of the most common sizes across face wash, hand cream, sunscreen and personal-care products. The final diameter depends strongly on brand positioning. A clinical skincare product may use a narrow, taller form, while a mass-market cleanser may use a wider tube with a larger flip-top cap.
150ml to 250ml cosmetic tubes
Larger tubes are common for face cleansers, body products, shampoo, conditioner and value-size personal-care packs. At this scale, standing stability, cap diameter and filling line compatibility become increasingly important.
How Do You Choose the Right Cosmetic Tube Diameter?
A useful cosmetic tube diameter chart can narrow the options, but diameter should ultimately reflect how the product will be manufactured, displayed and used.
1. Start with target capacity
Capacity gives you the initial range. A 30ml travel product does not need the same body width as a 200ml shampoo tube. However, avoid treating capacity as the only decision. The objective is to find proportions that are functional and visually appropriate.
2. Check filling line compatibility
This is one of the most important B2B considerations and one of the easiest to overlook.
Do not choose a diameter only from a design rendering. If the customer already has automated filling and sealing equipment, the machine may be set up for a particular tube diameter range.
- Tube holders or pucks
- Filling position
- Orientation equipment
- Hot-air or ultrasonic sealing setup
- Cartoning equipment
3. Consider how full the tube will look
An excessively wide tube used for a small filling volume can create poor proportions. The tube may need to be very short or leave a visual impression that the pack contains less product than expected.
In contrast, an extremely narrow tube can become unnecessarily long and difficult to pack efficiently.
The best cosmetic tube size should look naturally proportioned when filled, not artificially oversized for marketing purposes.
4. Consider the formula viscosity
Tube dimensions also affect squeeze behavior. A highly viscous cleanser in a large, stiff package can require more force than expected, while a soft PE tube can create an easier dispensing experience.
Diameter therefore needs to be considered together with:
- PE or ABL material
- Wall thickness
- Orifice diameter
- Cap design
- Formula viscosity
Which Cosmetic Tube Size Works for Different Products?
Different applications create different packaging expectations. A face wash tube size is usually larger than a serum sample tube, while sunscreen often needs to balance portability with enough capacity for repeated application.
| Application | Common Capacity | Typical Diameter Range | Recommended Starting Point |
|---|---|---|---|
| Sample / Trial | 5–15 ml | Ø13–19 mm | Small screw cap |
| Travel Size Cosmetic Tube | 15–50 ml | Ø19–30 mm | Screw / flip-top |
| Hand Cream | 30–100 ml | Ø25–40 mm | Flexible PE tube |
| Face Wash | 50–150 ml | Ø30–45 mm | Flip-top PE / ABL |
| Sunscreen | 30–100 ml | Ø25–40 mm | PE / multilayer PE |
| Hair Care | 100–250 ml | Ø35–50 mm | Larger flip-top |
| Toothpaste tubes | 50–150 ml | Ø30–40 mm | PE / ABL |
Face wash tube size
A typical face wash tube size often falls between 50ml and 150ml. Flip-top closures are common because the product is frequently used with wet hands. For thicker cleansers, diameter and orifice selection should be tested together so the package does not require excessive squeezing force.
Hand cream tube size
Hand creams frequently use 30ml to 100ml formats. Smaller sizes are easy to carry, while 75ml and 100ml formats work well for home use.
Sunscreen tube size
Sunscreen may use compact 30ml or 50ml formats for travel and facial application, while 80ml to 100ml formats are common when the product is intended for broader body use.
How Does the Cap Affect Cosmetic Tube Dimensions?
The closure should be selected at the same time as the tube body. A change in cap diameter can change the overall proportions and the finished pack height. Confirm the cosmetic tube neck size with the closure specification before finalizing the pack.
Flip-top caps
Flip-top caps are widely used on face wash, shampoo, conditioner, sunscreen and larger personal-care tubes. They are convenient but usually create a larger visual base than a simple screw cap.
Screw caps
Screw caps can work especially well for smaller cosmetic tube sizes, travel packs and minimal designs.
Special applicators and nozzle closures
Long nozzles, precision tips and special applicators may increase the total packaging height even when the tube body itself remains unchanged.
That is why carton dimensions should be based on the finished tube plus closure, not the empty tube body alone.
Do PE and ABL Tubes Use the Same Size System?
PE and ABL tubes can use similar nominal diameters and capacities, but material structure affects the final packaging experience.
PE cosmetic tube sizes
PE cosmetic tubes provide a softer squeeze feel and generally recover their shape more readily after dispensing. They are common across skincare and personal care and can be produced in different layer structures.
ABL tube sizes
ABL laminated tubes use an aluminum barrier layer and usually have a firmer laminated feel. The same nominal capacity may therefore feel different in the hand compared with PE.
Material choice should not be made by size alone. Barrier needs, formula compatibility, squeezing behavior and decoration requirements also matter.
What Should You Confirm Before Ordering Cosmetic Tubes?
Once the target capacity and approximate tube diameter are selected, the next step is turning that idea into a production specification.
Do not approve dimensions from an empty sample alone
An empty tube does not show exactly how the finished product will behave. Whenever practical, test the actual or representative formula.
A filled sample helps evaluate:
- Actual capacity
- Headspace
- Squeeze force
- Product dispensing
- Standing stability
- Cap sealing
- Overall proportions
Check diameter with the filling factory
If filling is performed by a separate contract manufacturer, confirm the selected diameter with that facility before ordering large quantities. This simple step can prevent unexpected tooling costs or production delays.
Confirm artwork after dimensions are fixed
Tube diameter affects the printable panel area and the usable space for logo proportions, regulatory text, artwork hierarchy and decoration planning. Artwork should be prepared according to the final print area, not an estimated tube size. Changing the diameter after artwork approval can affect text position, registration and seam areas.
Check secondary packaging and packing compatibility
Confirm the finished tube diameter and total height against the retail box, packing trays and automated cartoning or packing equipment. A tube can meet the target capacity but still require different carton dimensions or line tooling, so evaluate the complete filled pack before final approval.
Frequently Asked Questions About Cosmetic Tube Sizes
What are the most common cosmetic tube sizes?
Common cosmetic tube capacities range from small 5–30ml sample and travel formats to 50ml, 100ml and 150ml skincare tubes, with larger 200–250ml formats often used for hair care and body products. The correct diameter depends on the desired proportions and closure.
What diameter should I use for a 50ml cosmetic tube?
A 50ml cosmetic tube often begins around the Ø25–30mm range, although wider or narrower formats can be used depending on tube length, cap, formula and brand design. Always confirm final capacity with a production sample.
What diameter should I use for a 100ml cosmetic tube?
Many 100ml cosmetic tubes fall roughly in the Ø35–40mm range. A narrower diameter creates a longer tube, while a wider diameter allows a shorter body. The final choice should also consider filling-line compatibility.
Are cosmetic tube capacity and tube dimensions the same?
No. Capacity describes how much product the tube can hold, while cosmetic tube dimensions describe the physical diameter and length. Different combinations of diameter and length can produce a similar filling capacity.
How do I choose a travel size cosmetic tube?
Travel-size tubes commonly range from approximately 15ml to 50ml. Start by confirming the required product volume, then choose a compact diameter and closure that fits the intended bag, kit or retail carton.
Does tube diameter affect the filling machine?
Yes. Automated tube filling and sealing equipment may use diameter-specific holders, guides or change parts. If the customer already has filling equipment, confirm the acceptable diameter range before finalizing the tube.
Can DEZHOU recommend a cosmetic tube size?
Yes. Providing the quantity, target capacity, application, material preference, cap and artwork requirements gives the manufacturer enough information to recommend practical diameter and length options for sampling.
How Should You Choose the Final Cosmetic Tube Size?
The most important lesson from a cosmetic tube size chart is that capacity is only one part of the specification.
A reliable sourcing process is:
- Choose the target capacity.
- Select a practical diameter range.
- Check the filling line.
- Choose the cap and dispensing opening.
- Adjust tube length.
- Test the actual formula.
- Approve artwork only after dimensions are fixed.
Do not choose an oversized diameter simply to make the package look bigger, and do not force a narrow tube if it creates unnecessary filling or packaging problems. The best cosmetic tube size is the one that balances capacity, appearance, manufacturing and real-world use.
DEZHOU Packaging manufactures custom PE and ABL squeeze tubes for skincare, toothpaste and personal-care applications. If you already know your quantity and capacity, send those details for a packaging review with your preferred material, cap and artwork, and we can help evaluate suitable tube diameter options.
